SpecLynx OpenAPI Toolkit

The OpenAPI Powerhouse for VSCode

SpecLynx OpenAPI Toolkit is a VSCode extension providing advanced editing, validation, linting, and preview capabilities for Swagger/OpenAPI specifications.

Install Extension

Works everywhere: Desktop VSCode, vscode.dev, github.dev, and GitHub Codespaces. A rare capability in the OpenAPI editing landscape.

Supported Formats

Full JSON and YAML support with identical features across all versions:

  • ✓ OpenAPI 2.0 (Swagger)
  • ✓ OpenAPI 3.0.x
  • ✓ OpenAPI 3.1.x

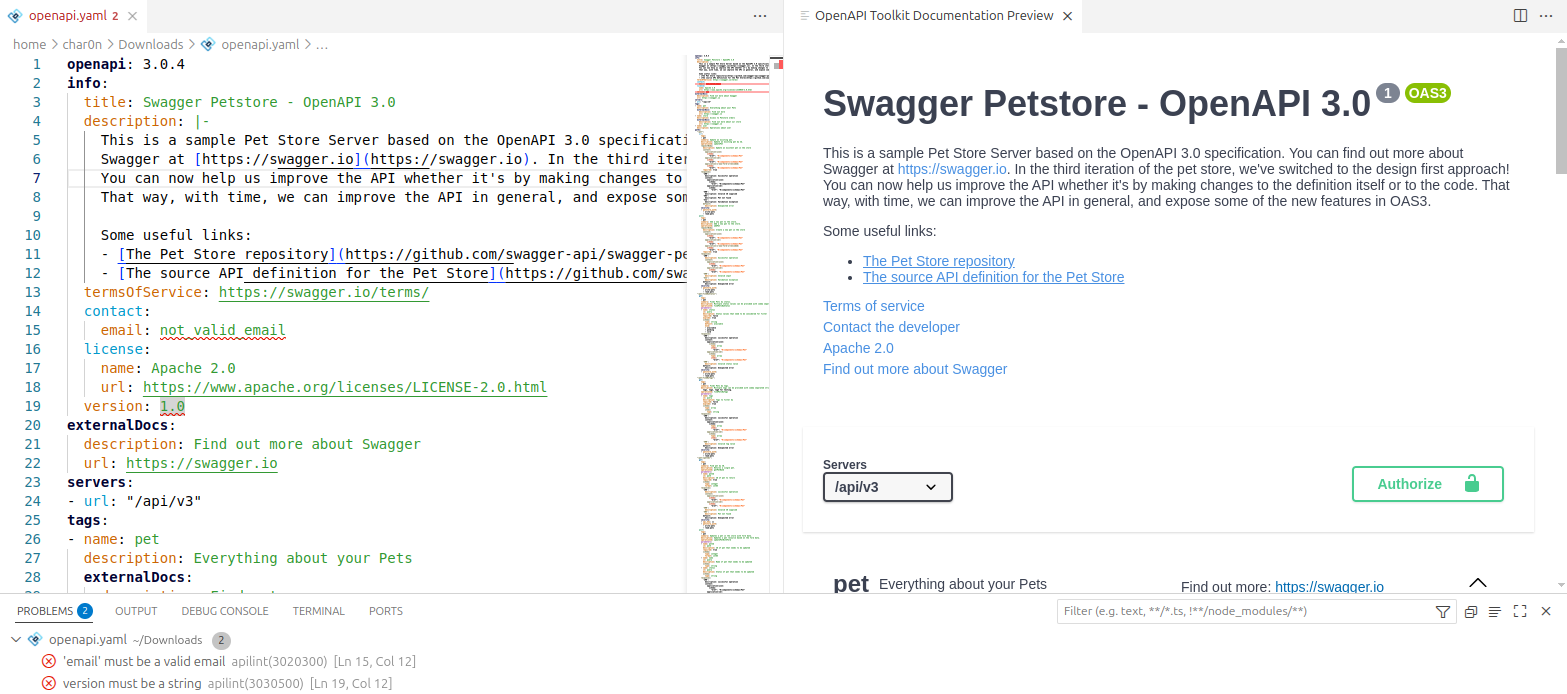

SpecLynx OpenAPI Toolkit

Editor

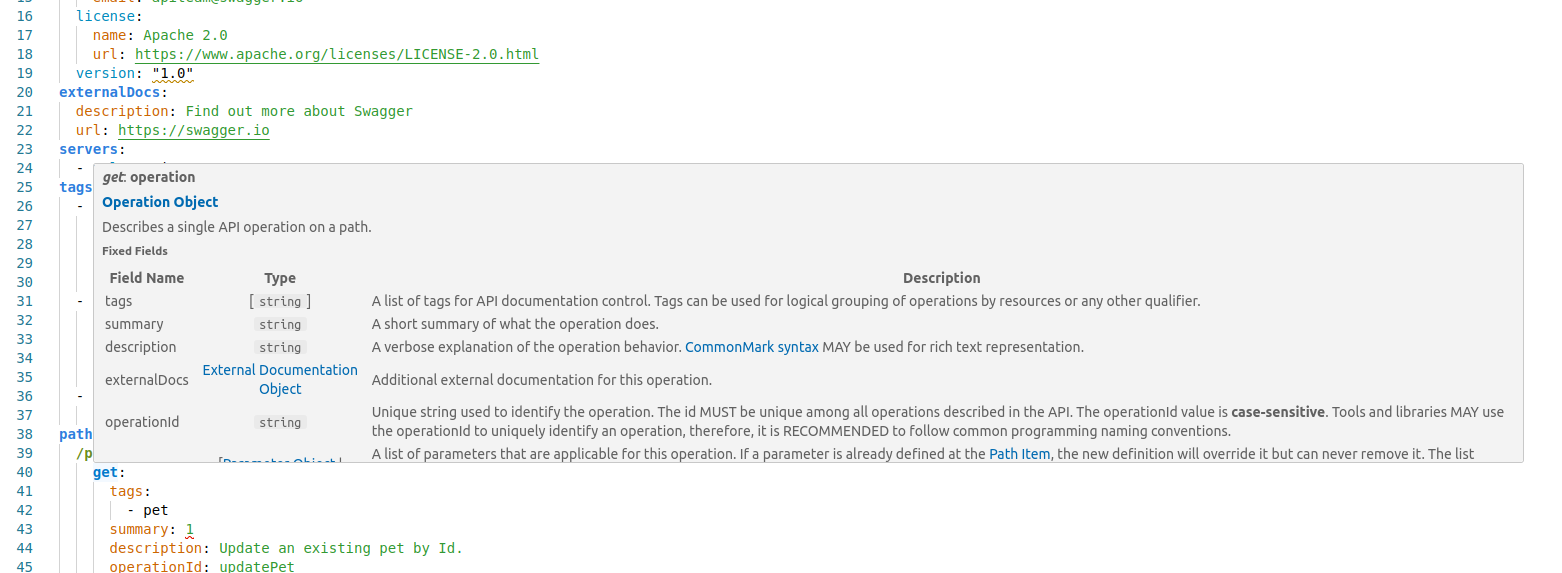

Hover Documentation

Hover over any keyword to see context-aware documentation panels matching official OpenAPI specifications. No more switching between your editor and the spec docs.

  • ✓ Full specification documentation inline
  • ✓ Reference targets resolved and displayed in tooltips
  • ✓ Same documentation appears in completion item details
Hover documentation

Autocompletion

Semantic intelligence, not just basic schema-driven suggestions. The completion system understands OpenAPI context and delivers smart, relevant options.

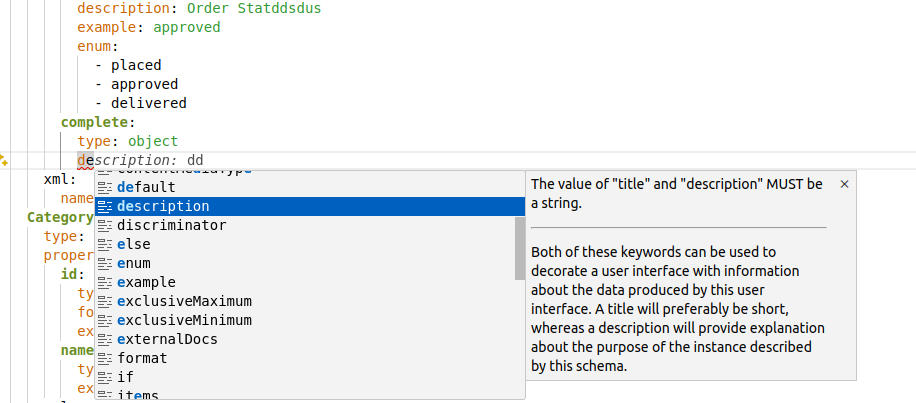

Completion with Documentation

Every suggestion includes full specification documentation inline.

Autocompletion with documentation

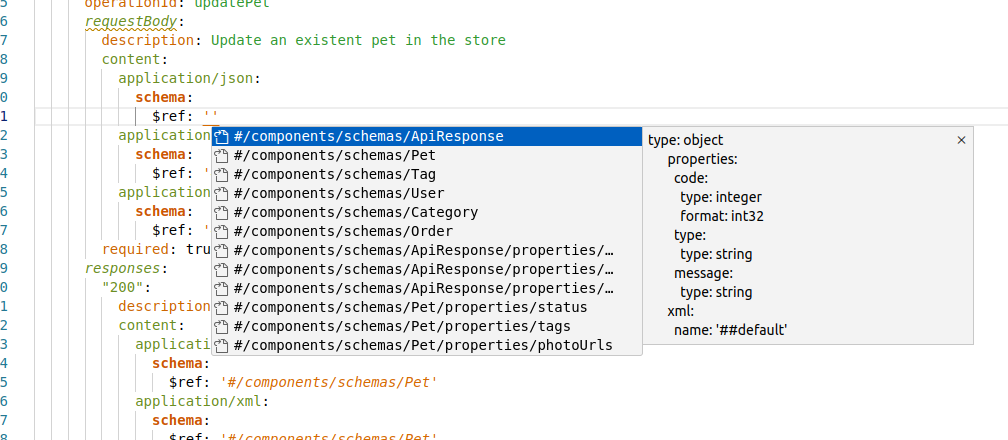

Reference Completion

In $ref values, suggests compatible targets with in-context preview of the referenced content.

Reference completion

Context-Aware Suggestions

Adapts to related fields. For example, type: integer shows only compatible format values.

Context-aware completion

References & Navigation

Navigate complex OpenAPI specifications with ease. Jump between definitions, find usages, and understand your API structure at a glance.

Feature Shortcut Description
Go to Definition F3 Jump to $ref targets across files
Go to References Shift+F12 Open panel listing all available references
Find All References Right-click menu Locate every usage of selected targets
Reference Preview Hover Display referenced content without losing focus
Document Symbols Ctrl+Shift+O Outline view and breadcrumb navigation
Dereference Command palette Generate dereferenced copies with automatic naming

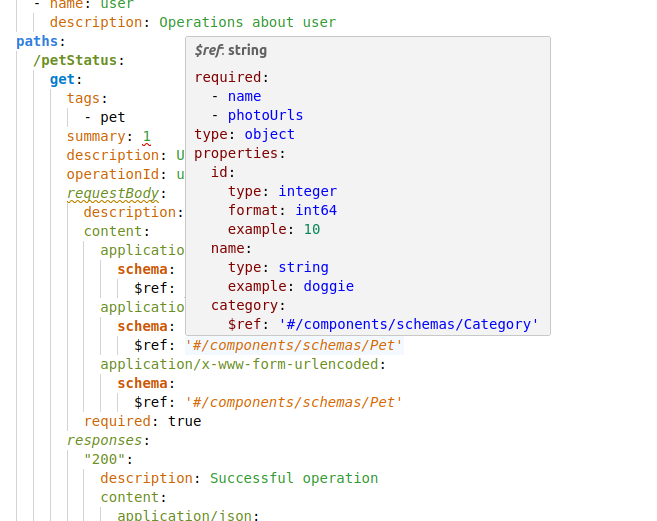

Reference Preview in Hover

Reference preview in hover

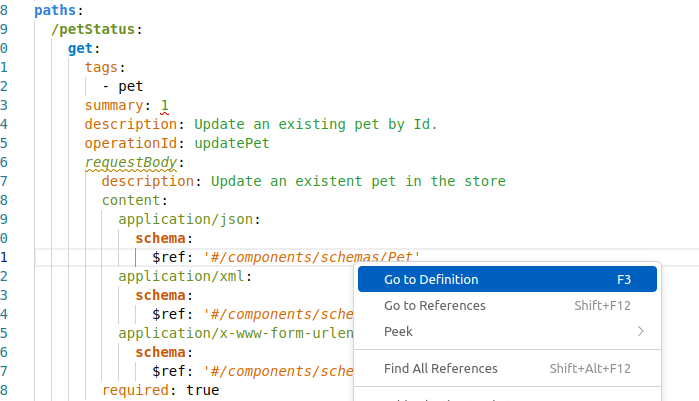

Go to Definition

Go to definition

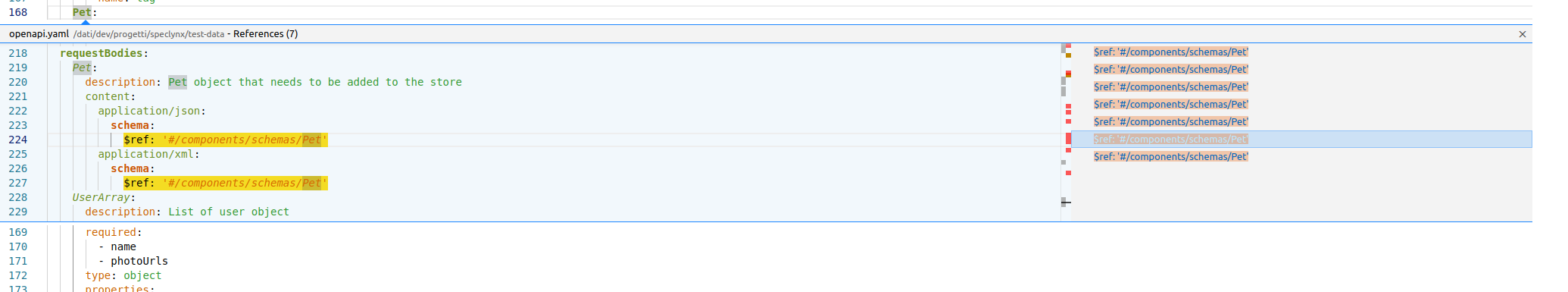

Go to References

Go to references

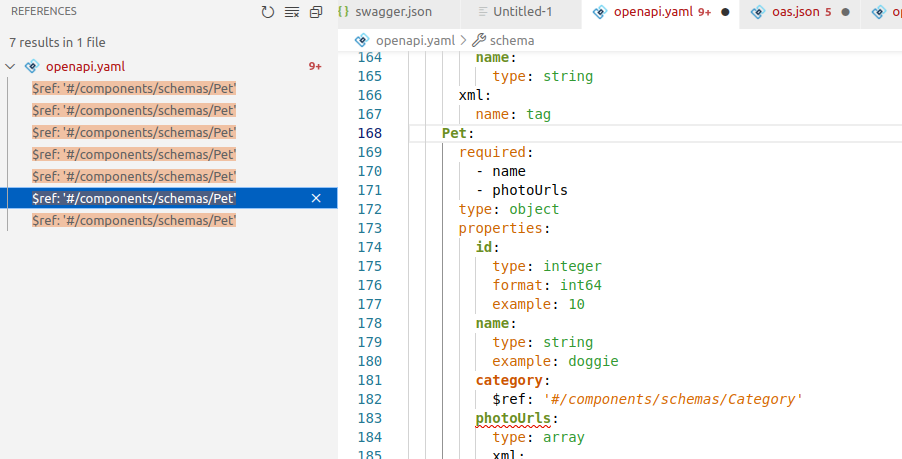

Find All References

Find all references

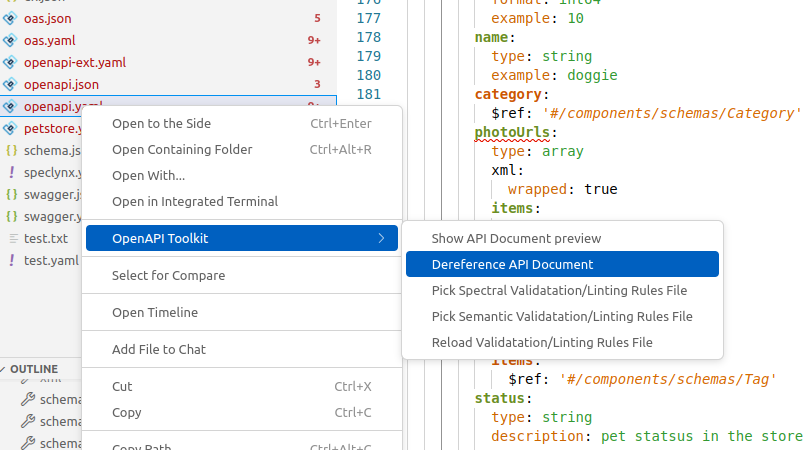

Dereference Command

Dereference command

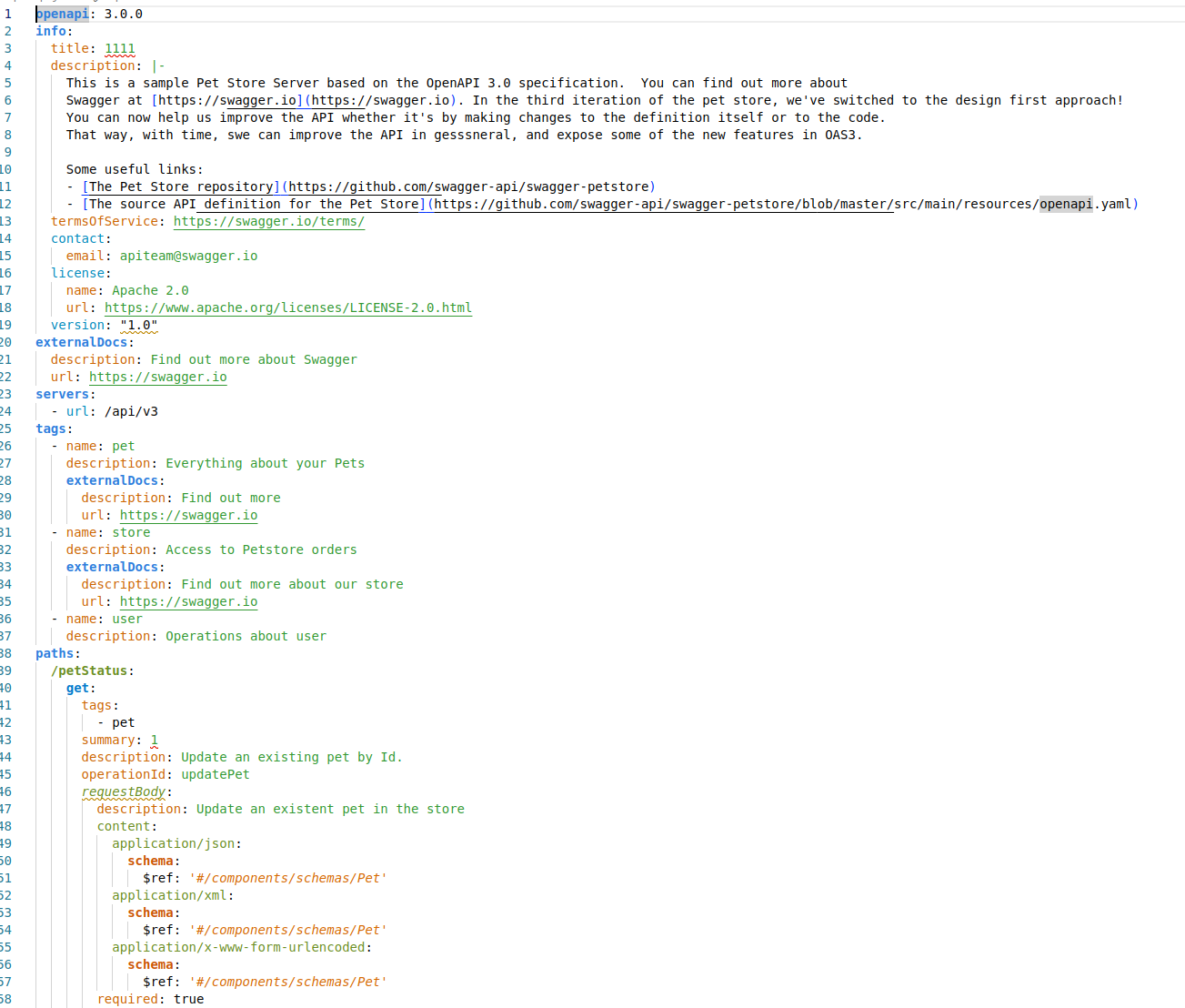

Syntax Highlighting

Semantic syntax highlighting that goes beyond basic JSON/YAML coloring. The toolkit distinguishes specific OpenAPI elements with distinct colors and font styles.

  • ✓ Operations highlighted distinctly
  • ✓ Schemas visually differentiated
  • ✓ References stand out for easy identification
  • ✓ Improved readability for complex specifications
Syntax highlighting

Tools

Formatting

Format your OpenAPI documents using VSCode's built-in formatting commands. The extension respects your editor's tab size and indentation preferences (tabSize and insertSpaces).

Use Shift+Alt+F or right-click and select "Format Document".

Document formatting

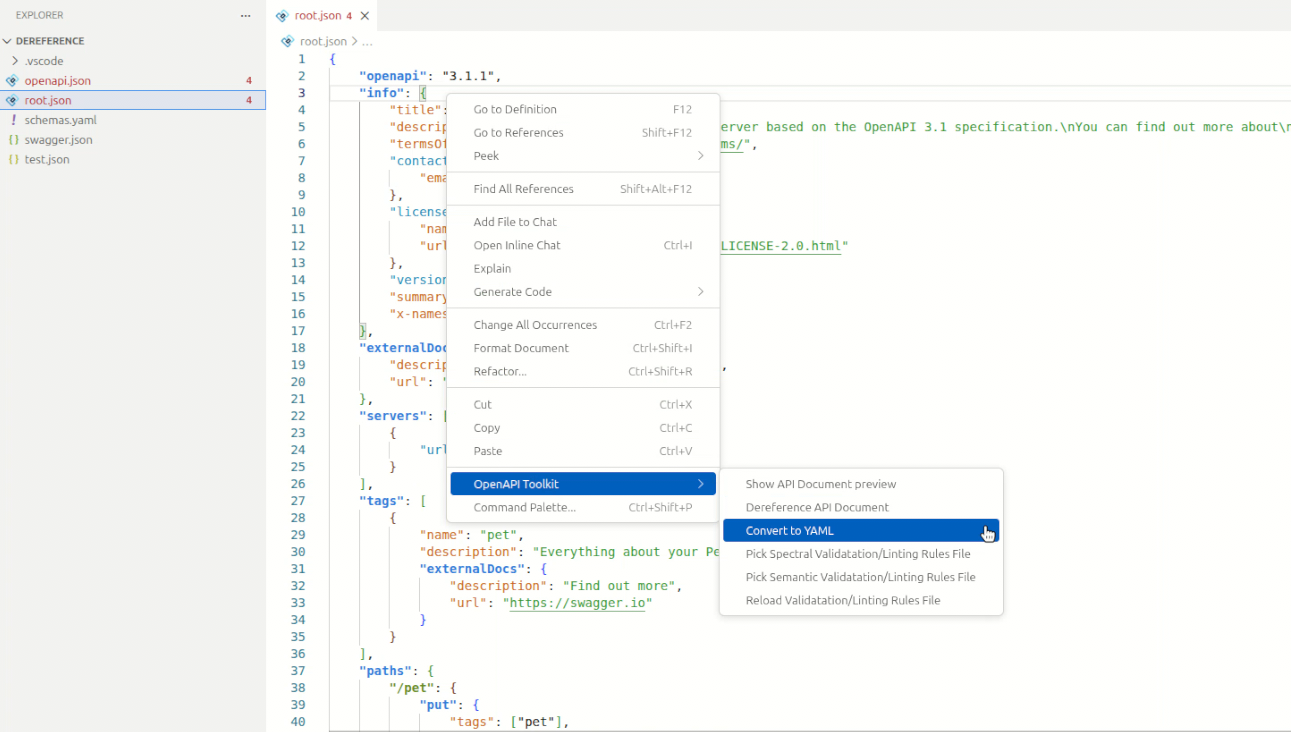

JSON / YAML Conversion

Convert between JSON and YAML formats with a single command. Right-click in the editor or use the Command Palette (Ctrl+Shift+P):

  • ✓ SpecLynx: Convert to JSON
  • ✓ SpecLynx: Convert to YAML

Default output filename: {filename}.{target-extension}

JSON/YAML conversion

Preview

See your API documentation rendered live as you edit. Open via Command Palette: OpenAPI Toolkit: Show API Document preview

Available Renderers

Renderer Description Default
Scalar Modern, clean API reference documentation Yes
SwaggerUI Classic OpenAPI documentation interface No

Interactive Features

  • ✓ Live rendering of specification changes
  • ✓ Server selection and authorization
  • ✓ Direct operation execution for request/response testing

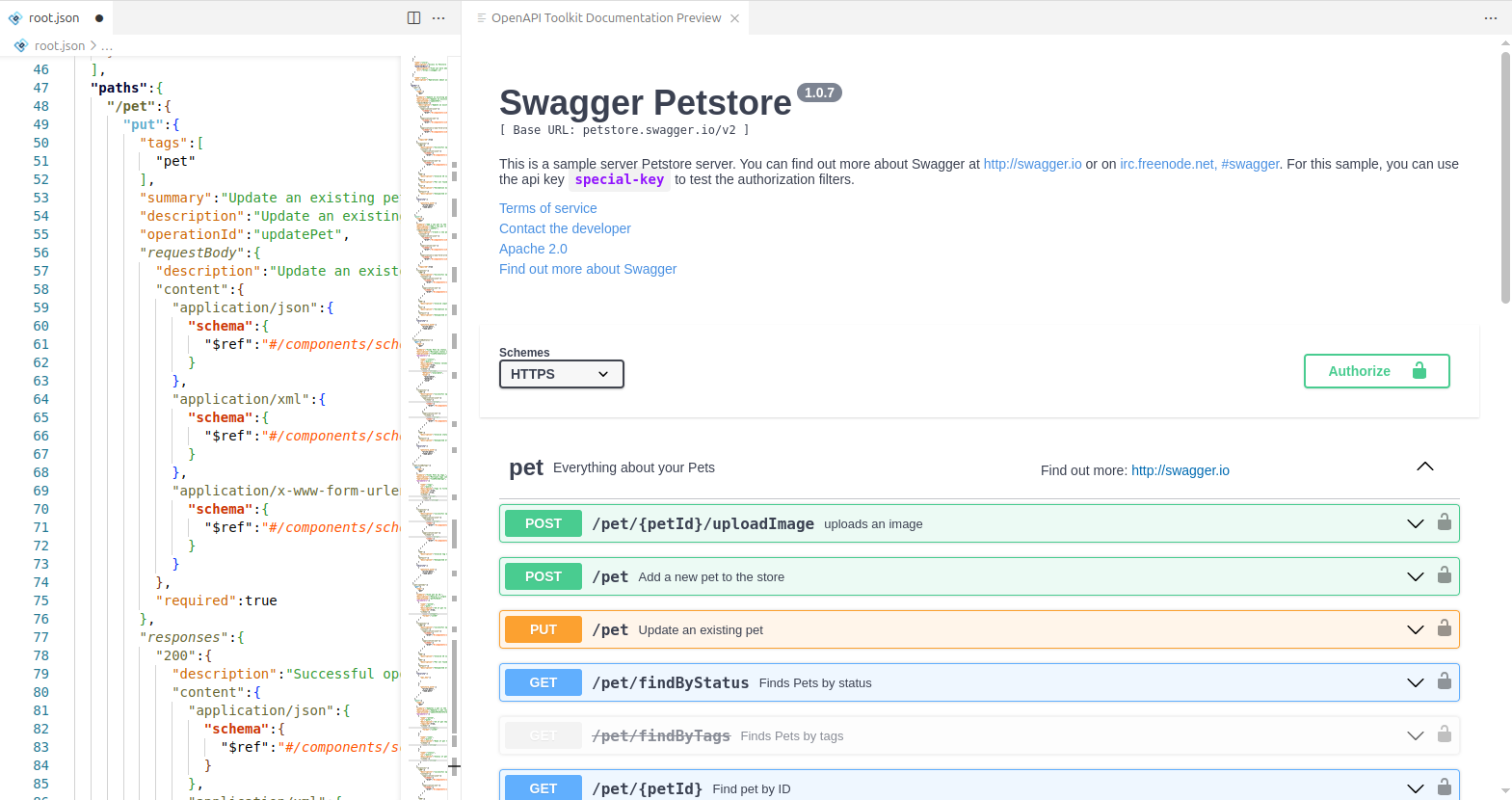

Scalar preview SwaggerUI preview

Validation & Linting

Validation & Linting

Three combinable validation modes catch issues at different levels. Use them together for comprehensive spec validation.

Definitions

Term Meaning
Validation Checks specification conformance - is it valid OpenAPI?
Linting Enforces best practices and quality standards beyond basic validity
Semantic Validation Targets semantic properties of OpenAPI elements (e.g., duplicate operationIds)
Semantic Linting Uses semantic element types and JSONPath expressions for custom rules

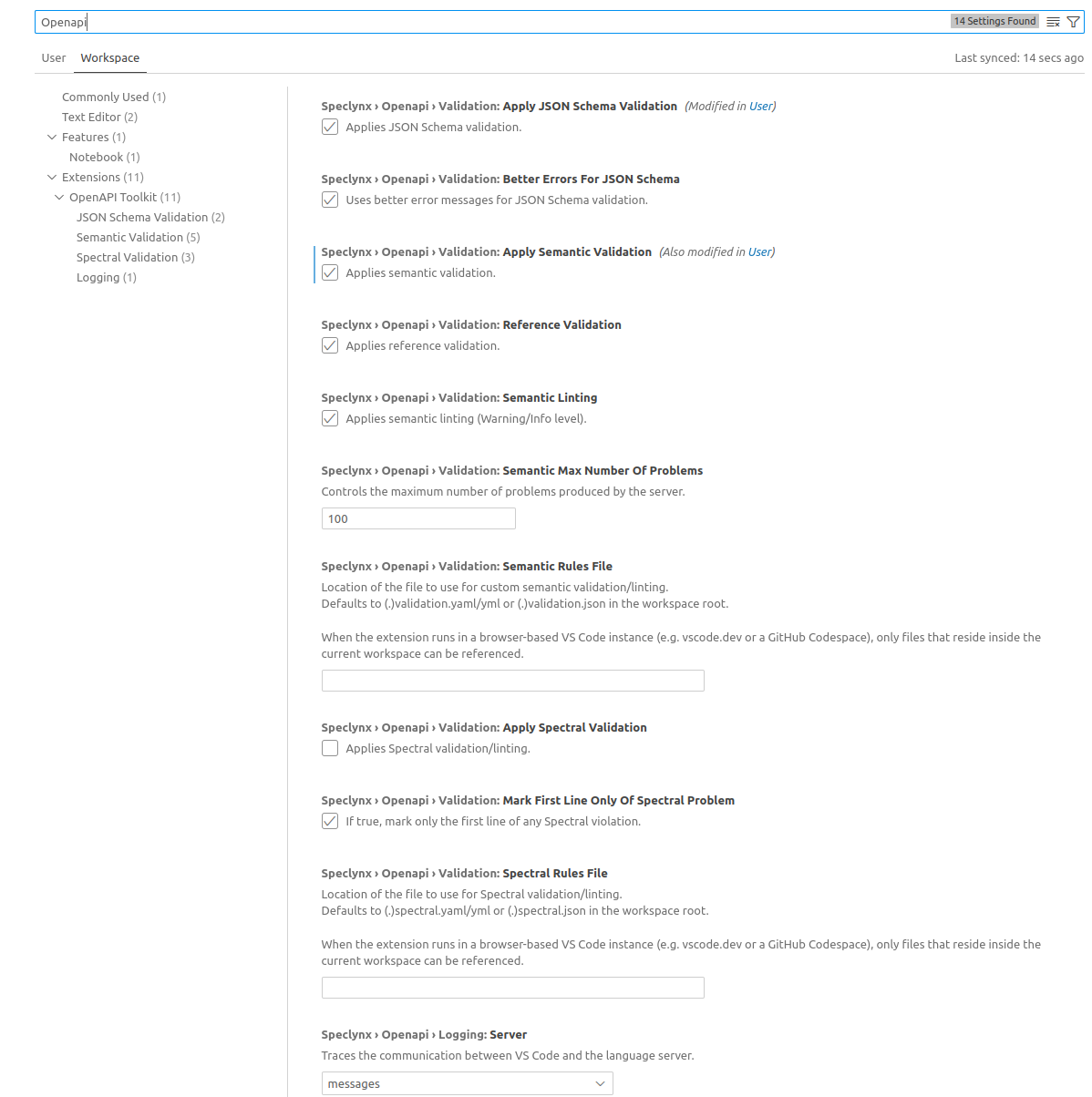

Validation Modes

Mode Default Description
JSON Schema Enabled Standard OpenAPI spec conformance checks against the official JSON Schema
Spectral Disabled Rule-based analysis using external Spectral rulesets for custom standards
Semantic Validation Disabled Deep validation of OpenAPI semantics beyond what JSON Schema can catch
Semantic Linting Enabled Custom rules targeting specific semantic element types
Validation modes

Spectral Integration

Use Spectral rulesets to enforce your team's API style guides and standards.

Setup

Enable Spectral validation in settings, then provide a ruleset via:

  • ✓ A .spectral.yaml, .spectral.yml, or .spectral.json at workspace root
  • ✓ Extension settings or the dedicated command

Example Ruleset

extends: spectral:oas
rules:
  operation-operationId: error
  operation-tags: warn

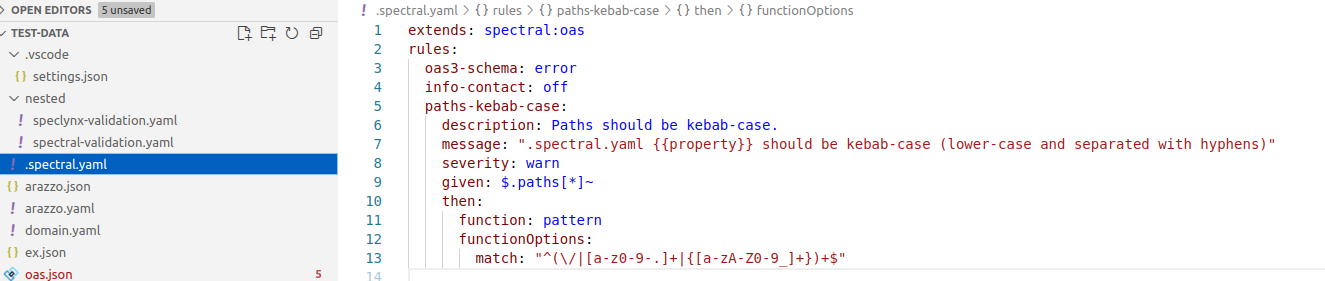

Create Ruleset

Create Spectral ruleset

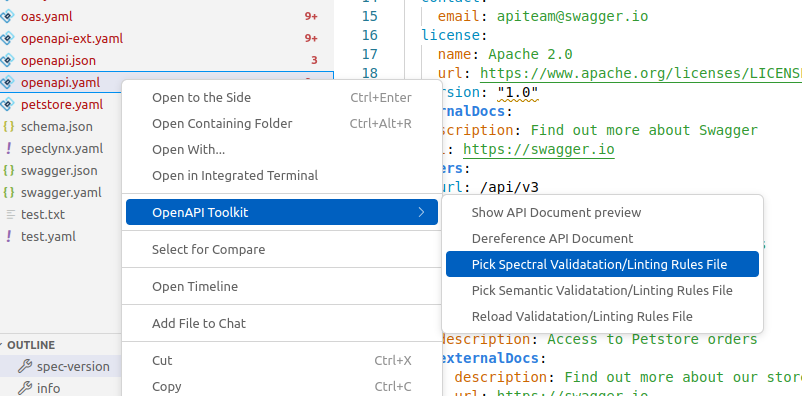

Validation in Action

Spectral validation in use

Semantic Validation

Goes beyond JSON Schema to catch issues that are syntactically valid but semantically incorrect:

  • ✓ Duplicate operationIds
  • ✓ Invalid $ref targets
  • ✓ Missing required fields in context
  • ✓ Type/format mismatches
  • ✓ Unused components
Semantic validation

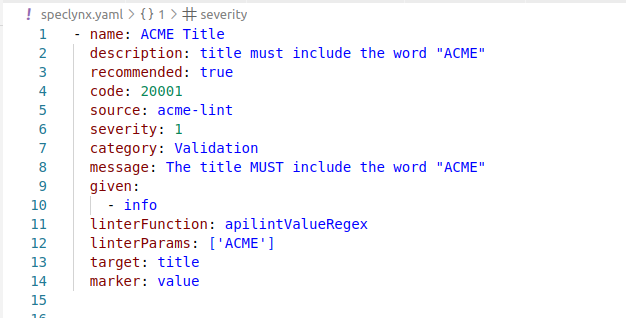

Custom Linting Rules

Create custom linting rules targeting specific semantic element types. Define rules in JSON or YAML format with JSONPath expressions for precise targeting.

Setup

Enable semantic linting in settings, then provide a ruleset via:

  • ✓ A .speclynx.yaml, .speclynx.yml, or .speclynx.json at workspace root
  • ✓ Extension settings or the dedicated command

Rule Structure

Each rule in your ruleset can include:

Property Description
Rule ID Unique identifier for the rule
Description Human-readable explanation of what the rule checks
Severity Error, warning, or info level
Target Selector Element type and/or JSONPath expression
Conditions Logic to evaluate against the target
Fixes Optional automated fixes when the rule triggers

Supported Element Types

Target rules to specific OpenAPI elements:

callback, components, contact, content, definitions, discriminator, encoding, example, external-documentation, header, headers, info, items, license, link, media-type, oauth-flow, oauth-flows, openapi, openapi3_0, openapi3_1, operation, parameter, parameters-definitions, path-item, paths, path-template, reference, request-body, response, responses, responses-definitions, schema, scopes, security-definitions, security-requirement, security-scheme, server, server-variable, swagger, tag, xml

Semantic linting rules

Installation

Launch VS Code Quick Open (Ctrl+P), paste and press enter:

ext install SpecLynx.vscode-openapi-toolkit
Open VSX Registry →

For VSCodium, Gitpod, Eclipse Theia

GitHub Releases →

Download .vsix directly

Changelog →

Version history

Configuration

All extension settings are accessible via File → Preferences → Settings. Search for @ext:SpecLynx.vscode-openapi-toolkit to see all options.

Key Settings

  • ✓ speclynx.validation.* - Enable/disable validation modes
  • ✓ speclynx.openapi.preview.renderer - Choose preview renderer
  • ✓ speclynx.spectral.ruleset - Path to Spectral ruleset

Why Choose SpecLynx OpenAPI Toolkit?

Engineered for clarity, control, and confidence - enabling you to focus on designing exceptional APIs.

Catch Errors Early

Real-time validation flags issues as you type, not after you ship.

Write Faster

Context-aware autocompletion suggests paths, parameters, responses, and components.

Stay Consistent

Spectral and semantic linting enforce your team's API standards.

See Changes Live

Preview panel updates with every keystroke - Scalar or SwaggerUI.

Roadmap

We build in the open. Here's what's coming:

  • ☐ New file templates
  • ☐ OpenAPI change detection
  • ☐ OpenAPI version conversion
  • ☐ Enhanced bundling
  • ☐ Arazzo support
  • ☐ Overlays support

Frequently Asked Questions

Is SpecLynx OpenAPI Toolkit free?

Yes. SpecLynx OpenAPI Toolkit is a free, open-source VSCode extension licensed under Apache 2.0. You can install it from the Visual Studio Code Marketplace at no cost.

What OpenAPI versions does the toolkit support?

The toolkit supports OpenAPI 2.0 (Swagger), OpenAPI 3.0.x, and OpenAPI 3.1.x. It also provides support for AsyncAPI 2.x specifications and Arazzo 1.x workflows.

Does it work with both JSON and YAML files?

Yes. All features including validation, completion, hover documentation, and live preview work with both JSON and YAML formats.

Can I use custom linting rules?

Yes. The toolkit supports Spectral rulesets for style guide enforcement, JSON Schema validation, as well as its own semantic linting rules that you can configure through the extension settings.
